SKU: WPR
Product

Description

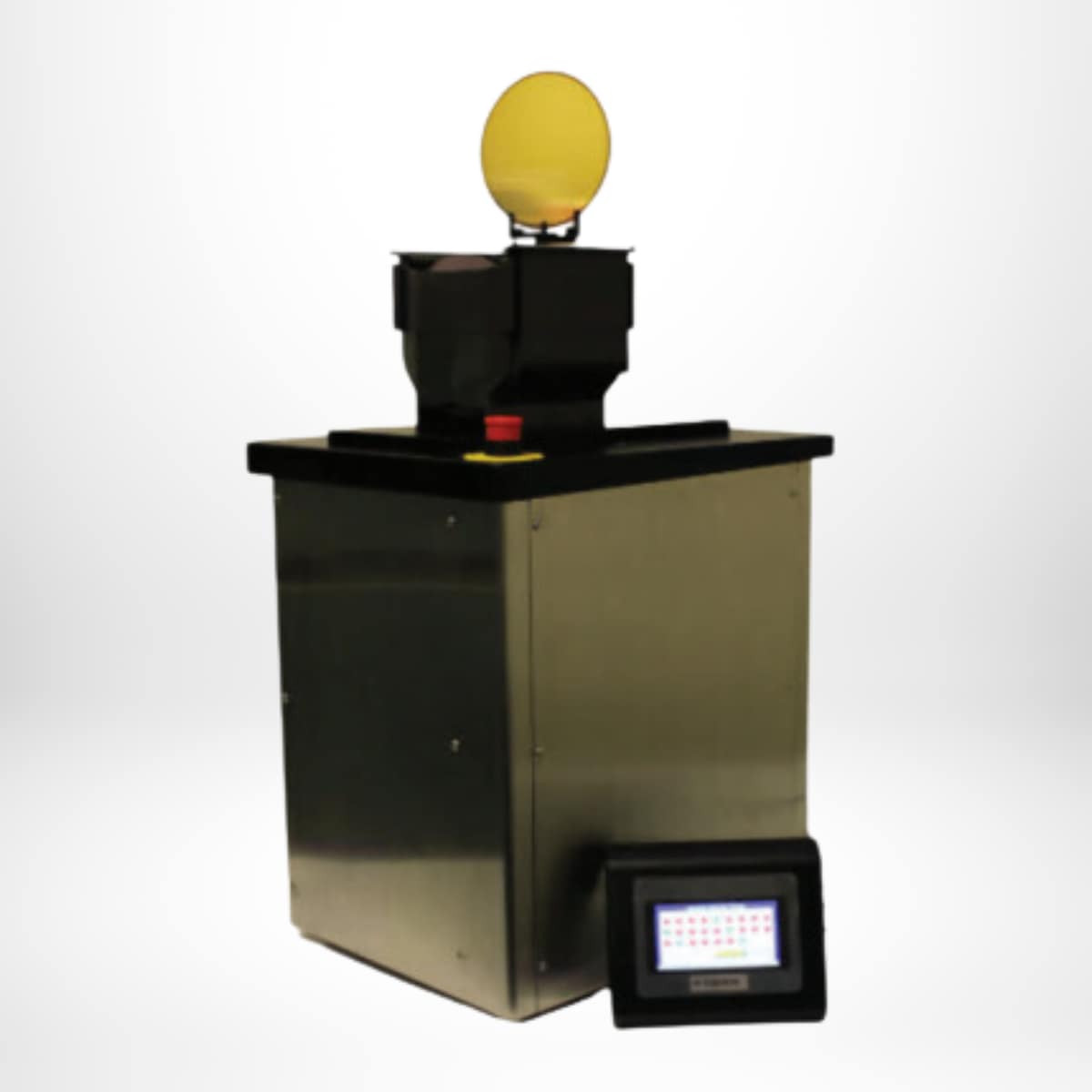

Automatic single-wafer presenter designed to present a wafer to an operator for inspection or removal from the cassette and for macro inspection applications. The WPR can be used for wafer flipping (inverting) the wafer 180° degrees for backside applications. Designed for ISO Class 3 (FS209E Class 1); Antistatic construction; Specify cassette model number with order.



The WPR Features:

  • A rotating lift blade allowing full front side and backside wafer inspection from one operator position



Specification
Wafer Size76, 100, 150, 200
Power Requirements24VDC 3 Amps 120VAC to 24VDC Power Supply Sold seperately
Dimensions16"W x 14"L x 21"H
Weight50 lbs
Shipping Info

Additional information

Shipping Weight 220 lbs
Dimensions 15 × 12 × 20 in
