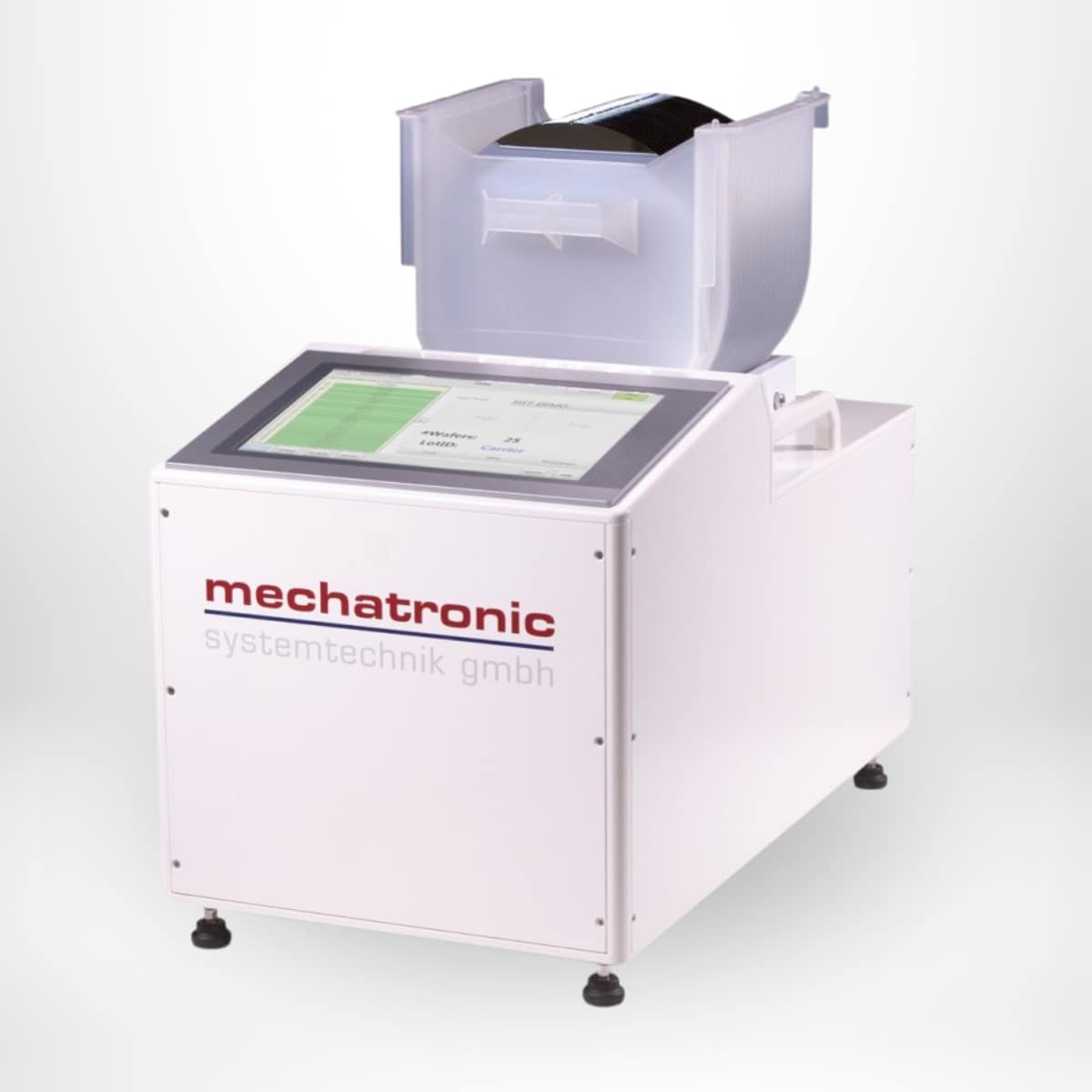

mBWR 200 Batch Wafer Reader

SKU: mBWR200
Product

Description

The Mechatronic mBWR200 represents the next generation of most advanced Batch Wafer Reader
systems. The mBWR200 ofers automatic notch-alignment of wafers inside a cassette as well as
front and backside reading. With the very intuitive user interface and the fast reading performance
the Batch Wafer Reader leaves nothing to be desired.

Application:

  • Automatic wafer alignment (notch)
  • Automatic reading of Wafer IDs
  • Front- and backside code recognition
  • Individual notch alignment possible

Highlights:

  • Complete process (alignment and ID reading) of 25
    wafers finalized in about 35 seconds
  • High-end Wafer ID Reader IOSS WID120
  • User friendly, intuitive GUI
  • SEMI standard GUI

Basic Configuration:

  • For 200 mm (8”) wafers in a cassette with 25 slots
  • High-end Wafer ID Reader IOSS WID120
  • Integrated powerful PC
  • 10,1“ touchscreen display
  • Automatic RGB-LED illumination
  • 2x USB 2.0 and 2x RJ45 interface
  • Log and print functions
  • Mapping Sensor
  • Cleaning function

Options

  • RFID Reader
  • SECS/GEM interface
  • Software customization

Specification
Wafer Size200
Shipping Info

Additional information

Shipping Weight 44 lbs
Dimensions 11.811 × 20.7874 × 12.0079 in
