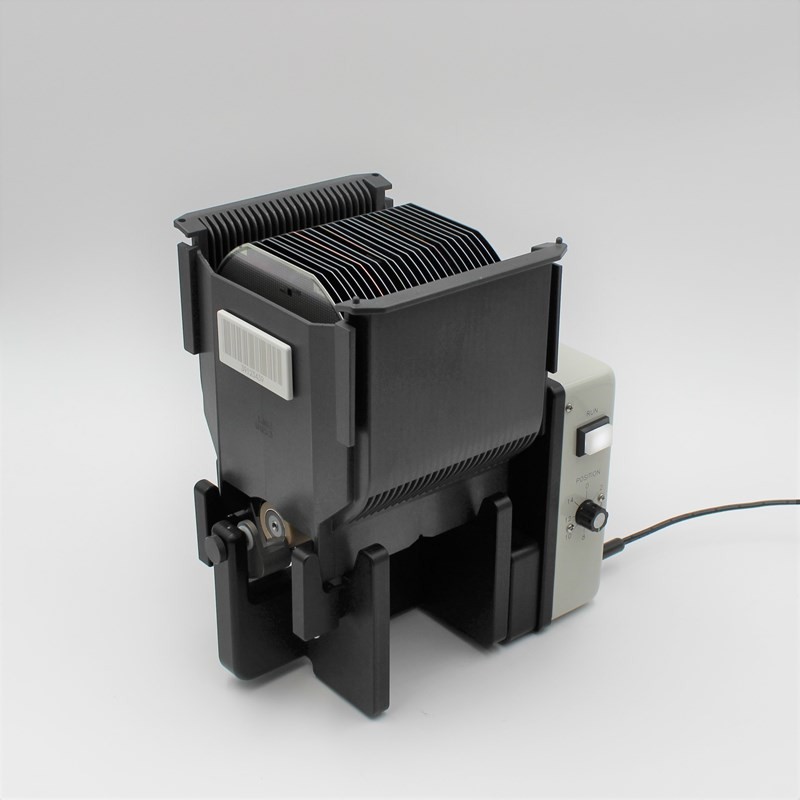

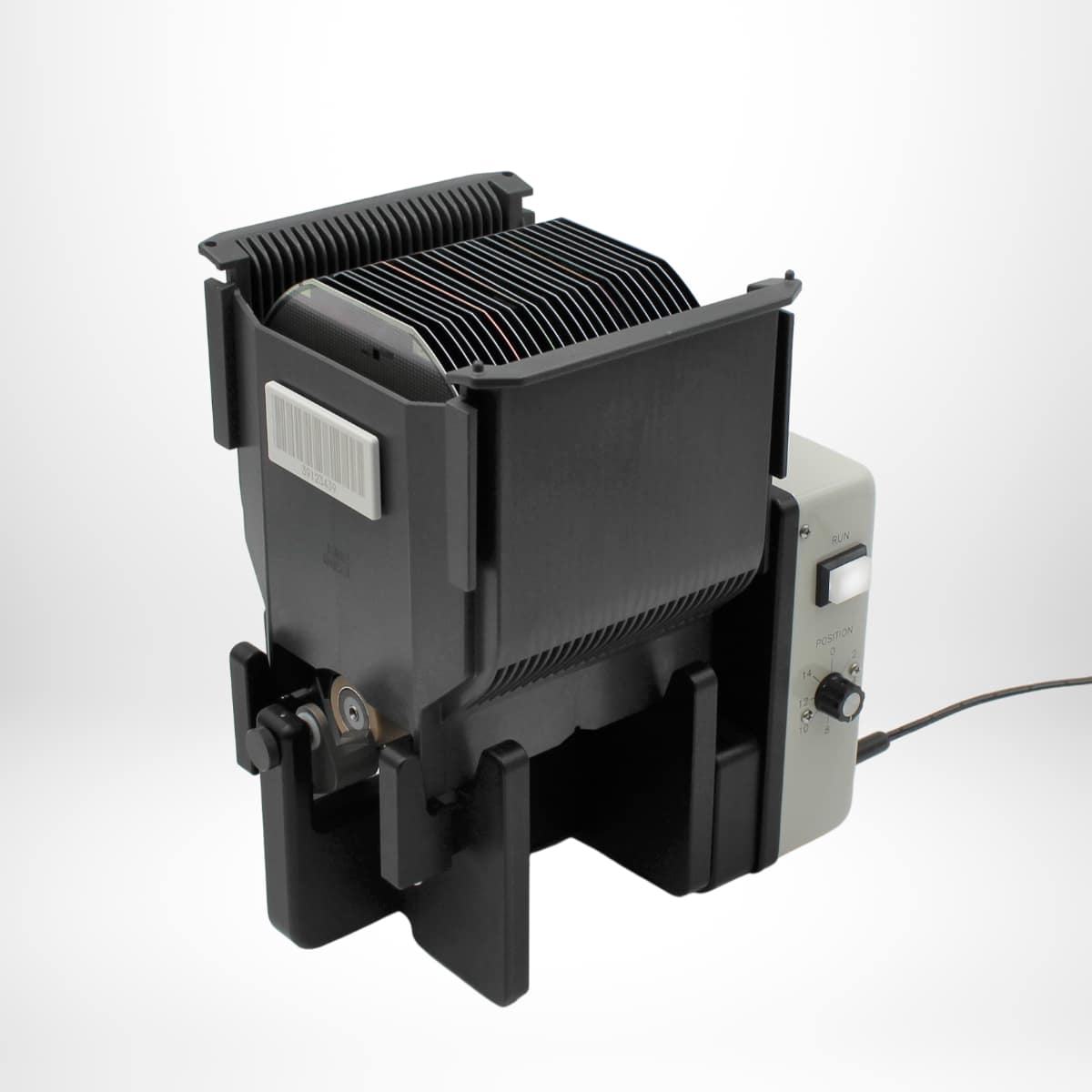

Automatic Flat Aligner - AFEZ



Tabletop automatic EZ Guide™ aligner bulk aligns wafer flats to +/- 1° accuracy. 16-position flat location switch allows for positioning at common industry final flat locations. ESD-safety controlled with static dissipative materials grounding both the wafer and cassette. Features quick-disconnect roller assembly for simple maintenance and cleaning. Designed for ISO Class 3 (FS209E Class 1); Antistatic construction; Specify cassette model number(s) with order.

Wafer Size76, 100, 125, 150, 200
Power Requirements12VDC/2 Amps 120VAC/12VDC power supply included.
Throughput100 Cassttes per hour
Dimensions7" x 11" x 7"
Weight4 lbs
Shipping Info

Additional information

Shipping Weight 5 lbs
Dimensions 7 × 11 × 7 in
Wafer Size

, , , ,
