SKU: MPF
Product

Description

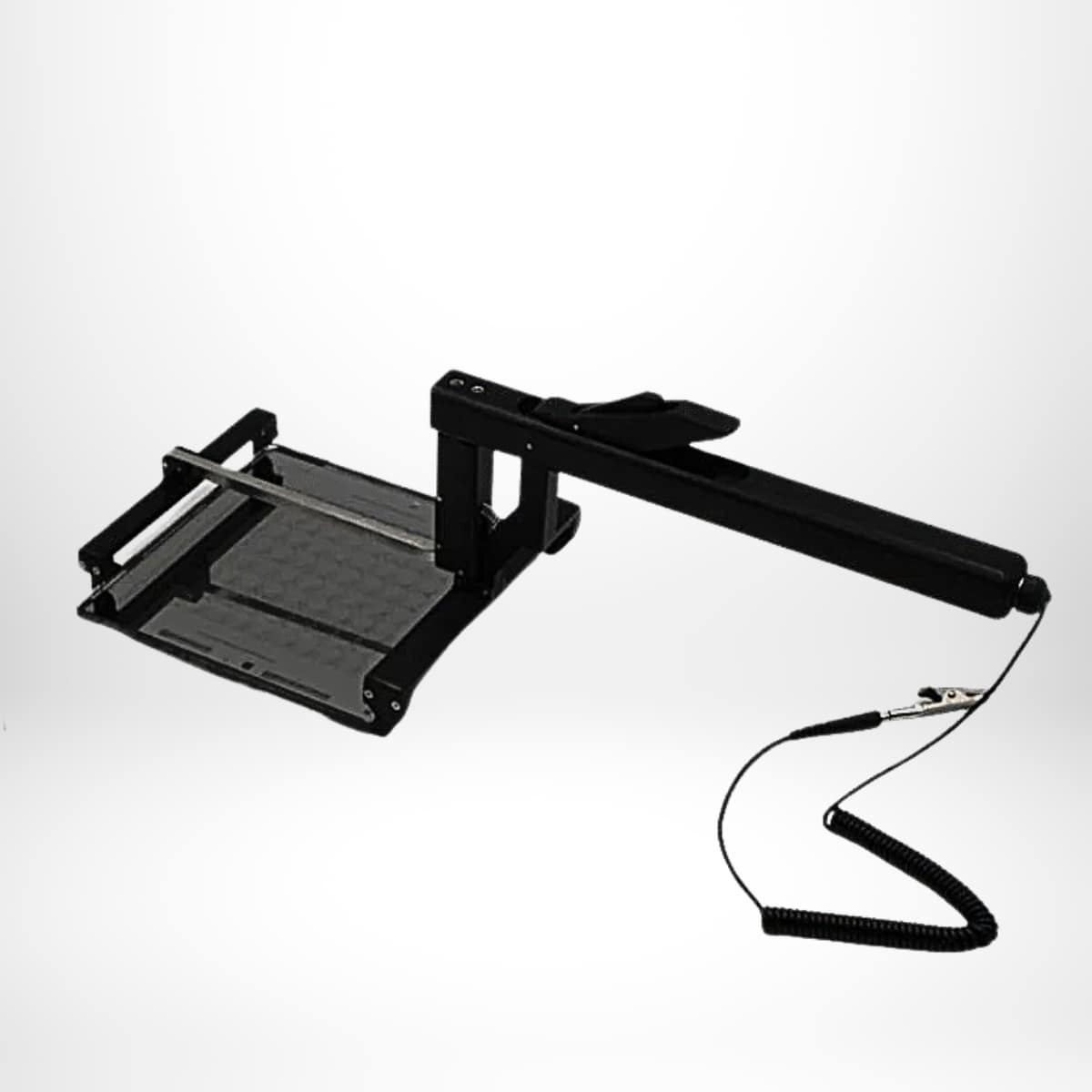

Special 4-gripper horizontal antistatic photomask picks for handling 6” reticles to / from a Nikon mask cartridge box. Ordering part number is based on pellicle size and location - grippers are positioned to avoid contact with pellicle frame. (typically loaded into the Nikon cartridge pellicle down). Designed for ISO Class 3 (FS209E Class 1) antistatic construction, chemical resistantTangential edge-grip only; no front or back face of chrome or pellicle contact.

  • Minimal moving parts for simple cleaning and low particle generation.
  • Lightweight, economical and easy-to-use with trigger-type gripping mechanism.
  • V-type grippers allow masks with beveled edges to be loaded from flat surfaces.
  • Antistatic construction for ESD-safety control of the chrome architecture.
Specification
Wafer Size5 in, 6 in
Shipping Info

Additional information

Dimensions 15 × 6 × 6 in
Wafer Size

,

Have some questions?
Product availability
Lead time
Product demo
Use this form to ask us any question about this particular tool. We will respond within 24 hours.

Shipping Policy
Return Policy
Warranty
Shipping Restrictions
Taxes

H-Square will ship the product to the customer using FedEx. Cost will be calculated using the FedEx website. H-Square does not charge an additional handling fee. If product is in inventory it will be shipped within 3 business days. If it is not in inventory, customer will be notified of the shipping date.

H-Square uses a Return Material Authorization (RMA) process. If you need to return a product, contact us at info@h-square.com to receive an RMA number. Please state name, product part number and reason for return. Once you receive the RMA number, ship the product back to H-Square. Customer is responsible for shipping costs to return product.

  1. If the product is being returned under warranty as defective, it will be repaired or replaced at no charge after evaluation.
  2. If product is being returned unused and unopened within 30 days, a full refund will be offered, less original shipping charges.
  3. If the product is being returned used within 30 days, product will be evaluated for condition and customer refunded accordingly.
  4. Products over 30 days cannot be returned for refund.
H-Square warranties their products for one year from date of sale. This warranty does not cover wear and tear from normal use.
US State Department restricts shipping to certain countries. If shipping outside of USA, the order will be reviewed before shipment.
H-Square will charge applicable sales tax if required by the State of California
