Description

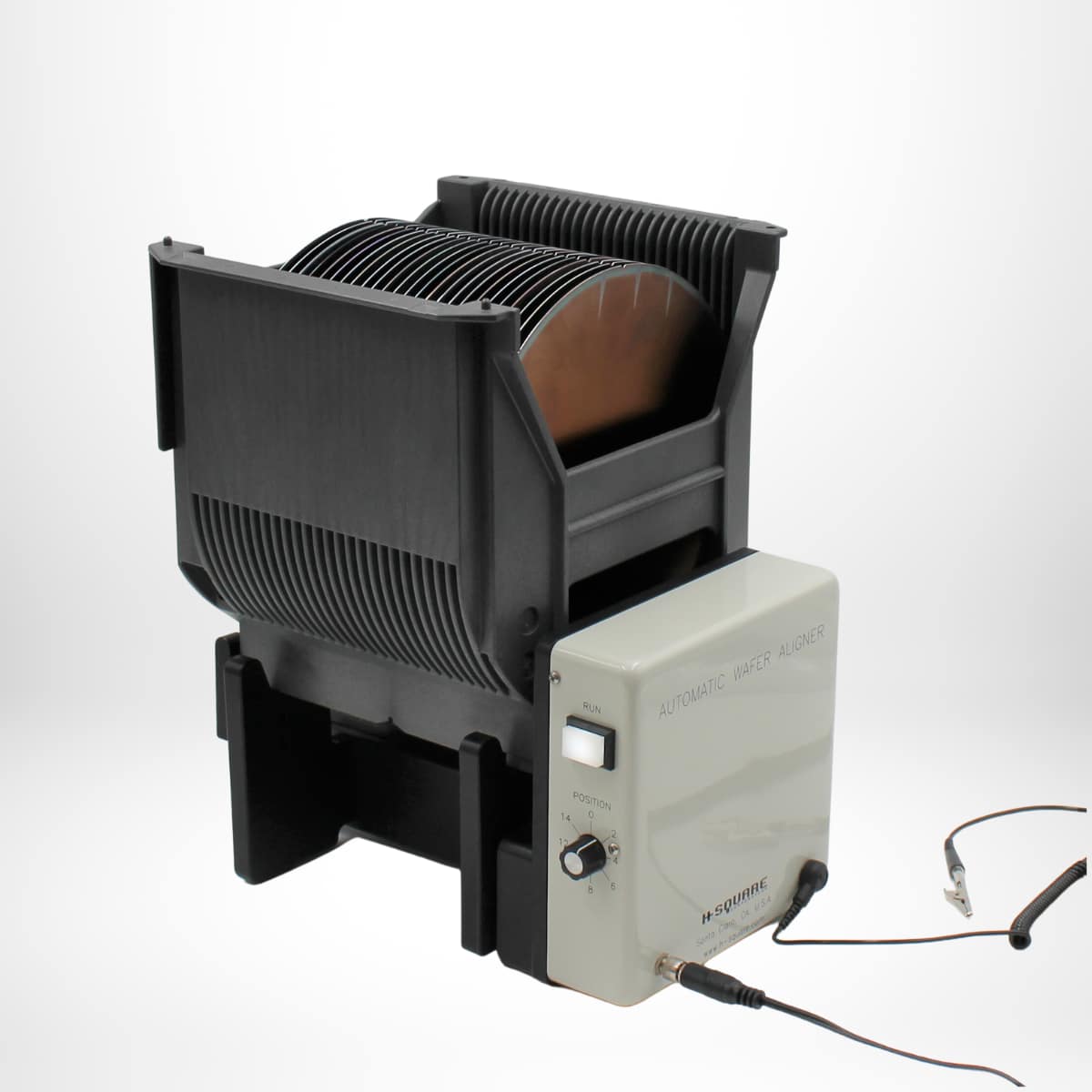

Tabletop automatic EZ Guide™ aligner bulk aligns wafer notches to +/- 1° accuracy. 16-position notch location switch allows for positioning at common industry final notch locations. ESD-safety controlled with static dissipative materials grounding both the wafer and cassette. Features quick-disconnect roller assembly for simple maintenance and cleaning. Designed for ISO Class 3 (FS209E Class 1); Antistatic construction; Specify cassette model number(s) with order.

Specification

Wafer Size	150, 200
Power Requirements	12VDC/2 Amps 120VAC/12VDC power supply included
Throughput	100 Cassttes per hour
Weight	3 lbs

Shipping Info

Additional information

Shipping Weight	5 lbs
Dimensions	7 × 11 × 7 in
