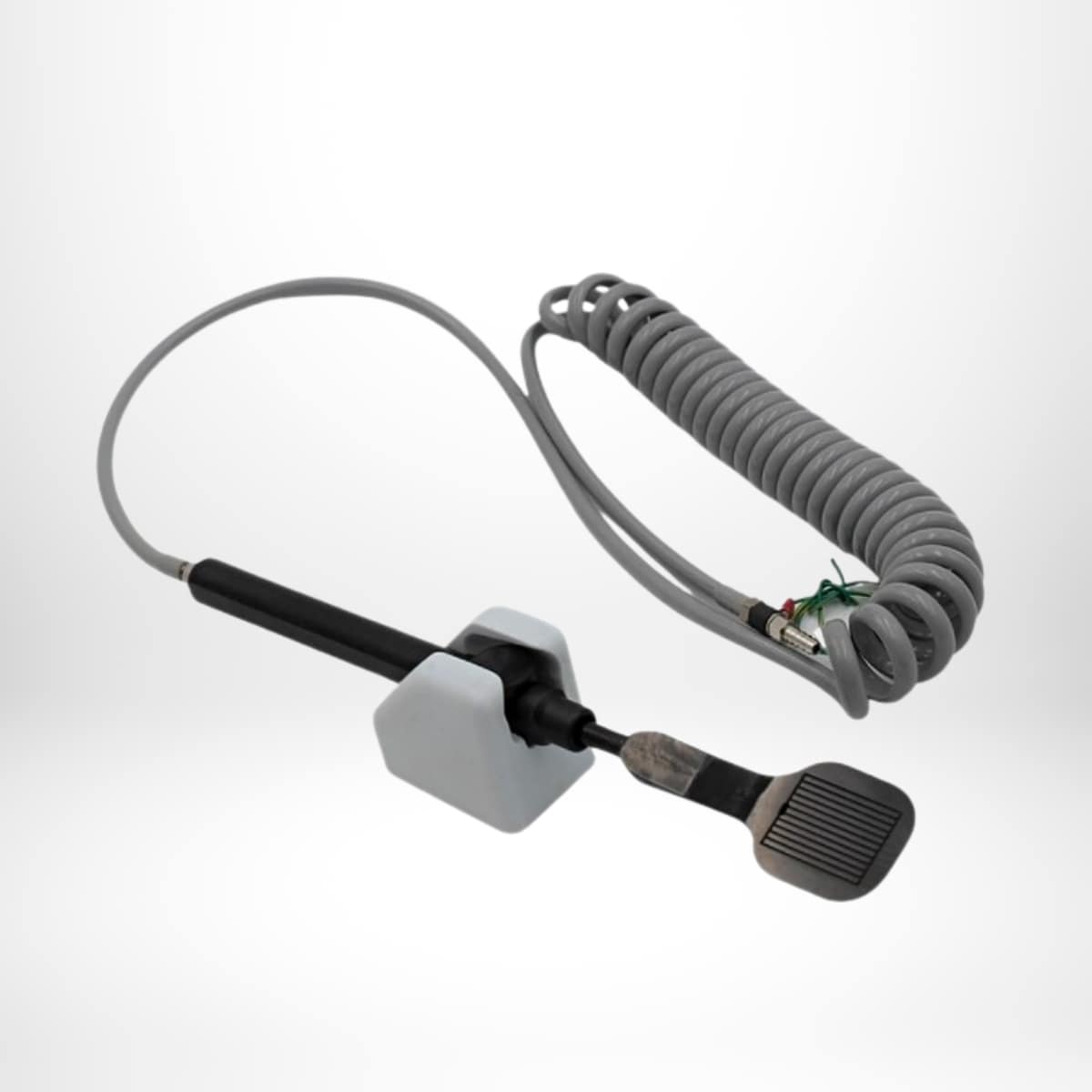

200mm Thin Wafer Vacuum Wand Set - VWSET-C

SKU: VWSET-C
Product

Description

A H-Square standard, the VWSET-C vacuum wand set used for handling 200mm and smaller thin wafers. Set includes everything needed to start handling wafers safely using house vacuum. H-Square recommends house vacuum greater than 22" Hg for best performance. Designed for ISO Class 3 (FS209E Class 1)
Antistatic construction, chemical resistant; This is a fixed set; no part substitutions.

Set includes:

  1. T793PKAS3 ESD PEEK Tip
  2. NOASPF2 Normally Open Vacuum Wand
  3. HSU Vacuum Wand Shut-off Holder
  4. CTA12 Adapter Assembly for grounding coil cord
  5. CC11SDS ESD Coiled Tubing

**Requires external vacuum source

Vacuum tip has a 0.15in2 area vacuum pocket. When used with 22″Hg vacuum source, has a 1.6 lbs theoretical holding capacity.

Specification
Wafer Size200
Dimensions10" x 10"
Weight0.5 lb
Shipping Info

Additional information

Shipping Weight 0.6 lbs
Dimensions 10 × 8 × 6 in

$360.00
