SKU: AWM2
Product

Description

Wafer sorting machine/wafer mover. The next evolutionary step between a vacuum wand and the integration of a high-cost wafer sorting platform tool. This stand-alone tabletop automated sorter utilizes a dual-cassette configuration. Compatible with industry standard shipping, process and metal cassettes. A cost-effective automation tool designed to reduce wafer breakage and scratches due to manual wafer handling practices. Designed for ISO Class 3 (FS209E Class 1); Antistatic construction; Specify cassette model number(s) with order.



The AWM2 Features:

  • Touchscreen control
  • 400 wafers per hour

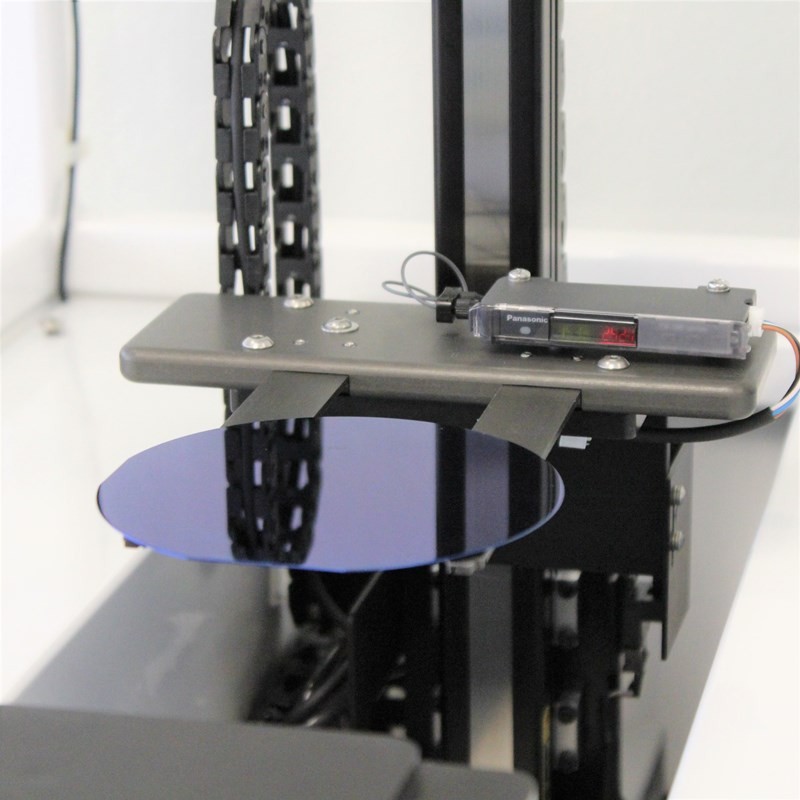

  • A mapping gravity end-effector with incorporated perfluoroelastomer touchpads
  • Wafer mapping checks for wafer presence, cross-slot, double stack
  • Wafer Protrusion Sensor
  • Pitch Change Capable
  • Multiple Recipe Modes
  • Thin Wafer Handling
Specification
Wafer Size76, 100, 150, 200
Power Requirements24VDC 3 Amps 120VAC to 24VDC Power Supply Sold seperately
Throughput400 wafers per hour
Dimensions25"W x 30"L x 32"H
Weight75 lbs
Shipping Info

Additional information

Shipping Weight 225 lbs
Dimensions 25 × 30 × 31 in
